miniScan
Dimensions: 14" x 10" x 3-1/2".
light weight 340g (including the battery)

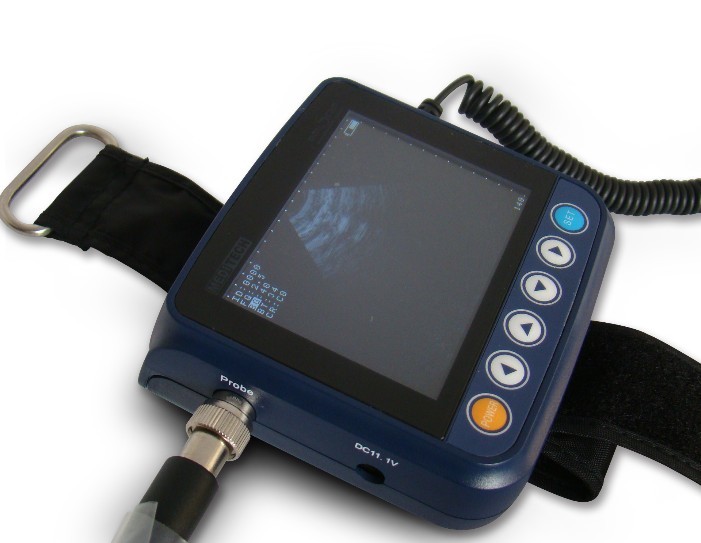

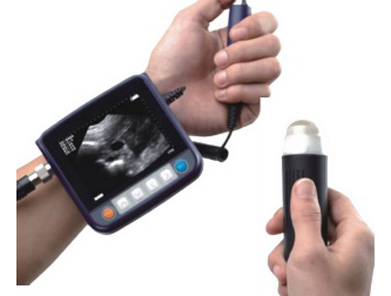

miniScan Mini Ultrasound Scanner Designed for both small and large animal pregnancy - pigs, cows, sheep to dogs , cats and more
High-quality images, easy to use, small size and ergonomics designing
More than 2.5 hours for continuous operation,with internal rechargeable battery and instant power-up
Waterproof and dust proof probe, and can be easily cleaned by flowing water.
Dimensions: 14" x 10" x 3-1/2".
light weight 340g (including the battery)
miniScan Mini Ultrasound Scanner Designed for both small and large animal pregnancy - pigs, cows, sheep to dogs , cats and more
High-quality images, easy to use, small size and ergonomics designing
More than 2.5 hours for continuous operation,with internal rechargeable battery and instant power-up
Waterproof and dust proof probe, and can be easily cleaned by flowing water.
Dimensions: 14" x 10" x 3-1/2".
light weight 340g (including the battery)
Main unit( miniScan ) veterinary ultrasound system
Multi-frequency waterproof ultrasound probe
Rechargeable lithium ion battery pack
AC-adaptor (AC110V~240V, 50/60Hz)
Wrist bandage
Carrying case
Two years factory warranty (one year for probe)
Optional:
Car Lighter
Video Goggles
Additional rechargeable Li ion battery pack
Ultrasound Goggles
Designed specifically for use with miniScan , its deliver significant improvements in viewing images from fertility and pregnancy scanning of horses, cattle, sheep, deer and goats.
Designed for use in the field, its tough and reliable. As well as being water resistant and dust tight, they can also be used over a wide temperature range.
The ultrasound image appears right in front of your eyes, means providing good peripheral vision to increase awareness of surrounding animals.
Comfortable and lightweight occupancy use over long periods.
Monitor: 3.5 inch high resolution color TFT LCD, 640 x 480 pixels
Probe: Multi-frequency mechanical sector probe
Frequency: 2.5/3.5/5.0MHz
Depth: Max 160mm
Scan Angle: 78 degree
Gray Shade: 256 gray levels
Built-in Memory: up to 128 frames
Common Measurement: Distance, Area, Volume, Heart Rate
OB Measurement:
Pig-HL,
Sheep/Goat-USD;
Bovine-BL, SL, HL
Cat-HD, BD;
Dog-BD, GSD, CRL, HD, BD
AC-adapter: 110V~240V, 50/60Hz
Battery: Internal Li Ion battery pack,More than 2.5 hrs for continuous working, Fully charges batteries in 2hrs (75% charge in 1 hr)
Weight: 340g including the battery
171mm × 93mm × 62mm
Packing information: Dimension 0.32×0.38×0.12 m
NW (3.4KG), GW (4KG)
